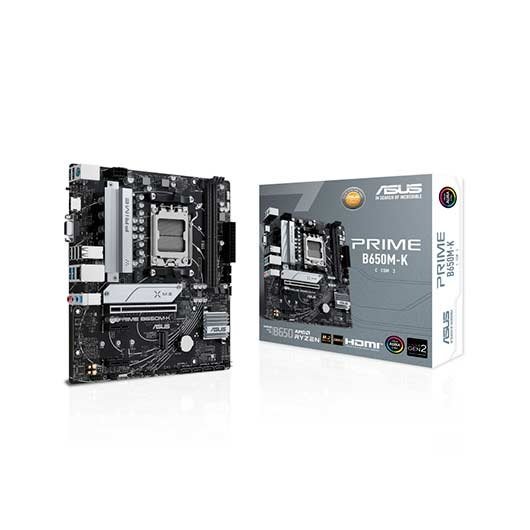

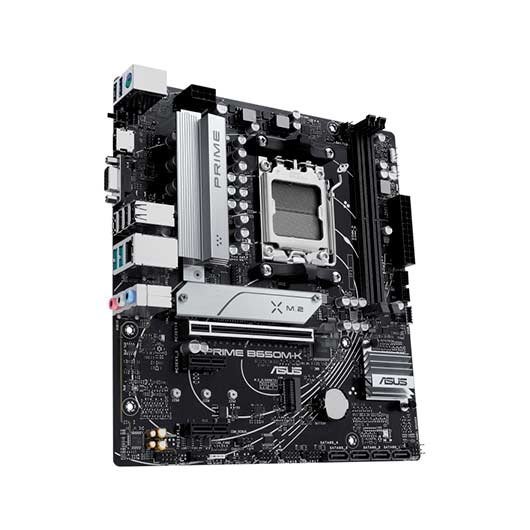

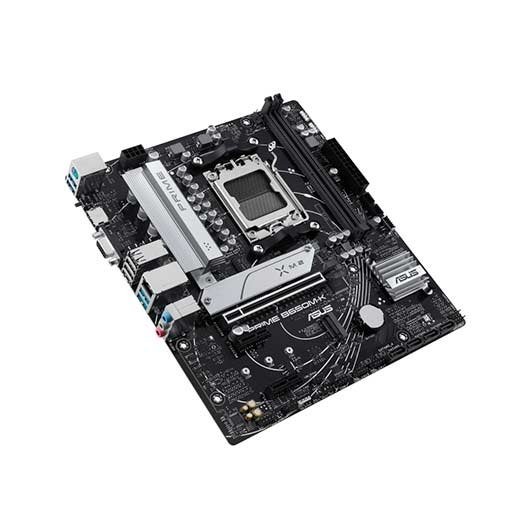

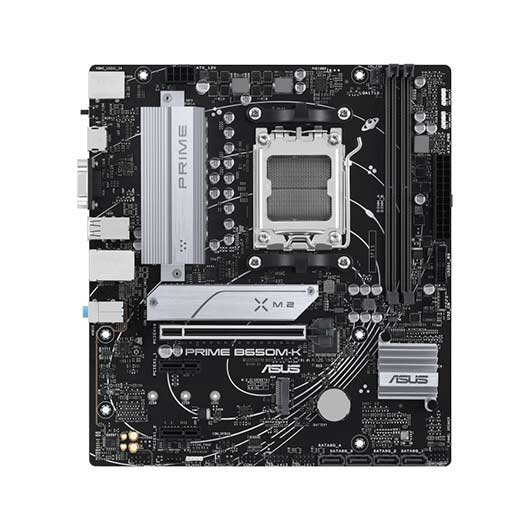

ASUS AM5 PRIME B650M-K

Name: ASUS AM5 PRIME B650M-K
SKU: 90MB1F60-M0EAY0
Price: 112.00 EUR
Availability: InStock

Próxima llegada:
Almacén: Almacen Y

Part number: 90MB1F60-M0EAY0
EAN/UPC: 4711387236628

La disponibilidad muestra el stock en nuestros almacenes, no en la tienda física. Si el producto está disponible, puede decidir que se lo enviemos a su domicilio o solicitar la recogida en tienda.

Fabricante: Asus

Puerto USB: 4 x USB 2.0 + 4 x USB 3.x

Salidas: HDMI, VGA

Tamaño: Micro ATX

Iluminación: RGB

Socket: AM5

Generación CPU: Zen 4

Tipo RAM: DDR5

RAM máxima: 96 GB

Velocidad RAM: 6400 Mhz

LAN: 1 Gbit

Chipset: B650

Ranuras RAM: 2

M.2: 2 x M.2

SATA: 4 x SATA

USB internos: 2 x USB 2.0 + 2 x USB 3.x

Disponibilidad:

Hay existencias

112.00€

Hay existencias

Descripción

Especificaciones Técnicas
Modelo	PLACA BASE PRIME B650M-K ASUS
Part Number	90MB1F60-M0EAY0
CPU	– AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors* – Refer to www.asus.com for CPU support list
Chipset	AMD B650 Chipset
Memory	– 2 x DIMM, Max – 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 – ECC and Non-ECC, Un-buffered Memory* – Dual Channel Memory Architecture – Supports AMD Extended Profiles for Overclocking (EXPO) – OptiMem II – Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support
Graphics	– 1 x VGA port – 1 x HDMI port** – Graphics specifications may vary between CPU types – Please refer to AMD CPU specifications
Expansion Slots	– AMD Ryzen 7000 Series Desktop Processors* – 1 x PCIe 4.0 x16 slot (supports x16 mode) – AMD Ryzen 8000 Series Desktop Processors – 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) – AMD B650 Chipset – 2 x PCIe 4.0** x1 slots – Please check the PCIe bifurcation table on the support site (https: //www.asus.com/support/FAQ/1037507/)
Storage	– Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* – AMD Ryzen 7000 Series Desktop Processors – M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – AMD Ryzen 8000 Series Desktop Processors – M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) – AMD B650 Chipset – 4 x SATA 6Gb**/s ports – AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet
USB	– Rear USB (Total 8 ports) – 2 x USB 3.2 Gen 2 ports (2 x Type-A) – 2 x USB 3.2 Gen 1 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – Front USB (Total 7 ports) – 1 x USB 3.2 Gen 1 connector (supports USB Type-C) – 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports – 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	– Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Back Panel I/O Ports	– 2 x USB 3.2 Gen 2 ports (2 x Type-A) – 2 x USB 3.2 Gen 1 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – 1 x VGA port – 1 x HDMI port – 1 x Realtek 2.5Gb Ethernet port – 3 x Audio jacks – 1 x BIOS FlashBack button – 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	– Fan and Cooling related – 1 x 4-pin CPU Fan header – 2 x 4-pin Chassis Fan headers – Power related – 1 x 24-pin Main Power connector – 1 x 8-pin +12V Power connector – Storage related – 2 x M.2 slots (Key M) – 4 x SATA 6Gb/s ports – USB – 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) – 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports – 2 x USB 2.0 headers support 4 additional USB 2.0 ports – Miscellaneous – 2 x Addressable Gen 2 headers – 1 x Aura RGB header – 1 x Clear CMOS header – 1 x COM Port header – 1 x Front Panel Audio header (AAFP) – 1 x S/PDIF Out header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header
BIOS	– 256 Mb Flash ROM, UEFI AMI BIOS – Manageability – WOL by PME, PXE
Form Factor	– micro-ATX Form Factor – 24.4 cm x 22.1 cm

Part Number: 90MB1F60-M0EAY0
EAN: 4711387236628

SKU: 90MB1F60-M0EAY0 Categorías: Componentes, Placa base AMD, Socket AM5 Etiqueta: Almacen Y
