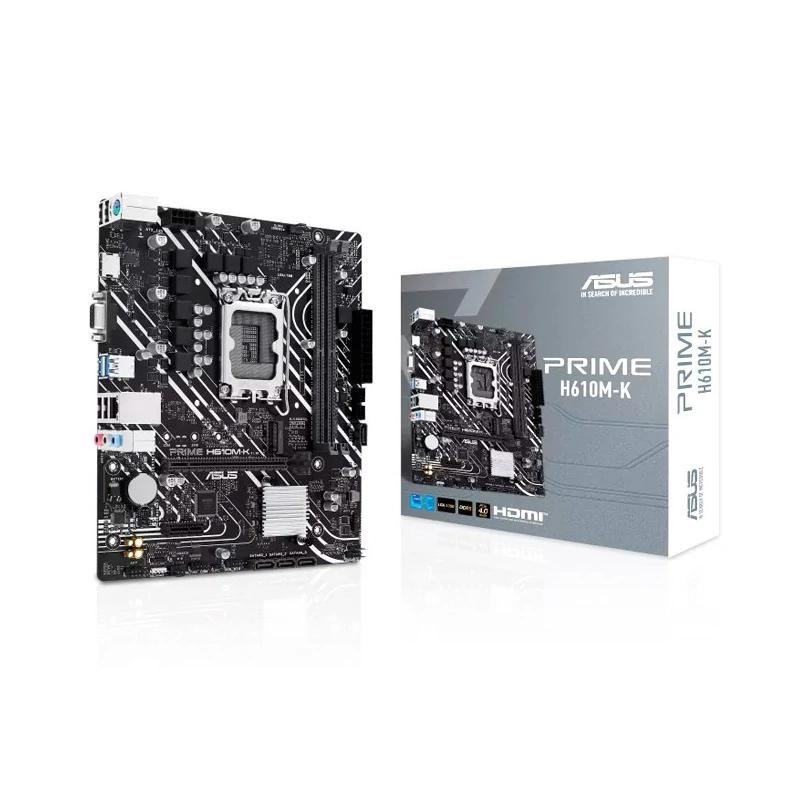

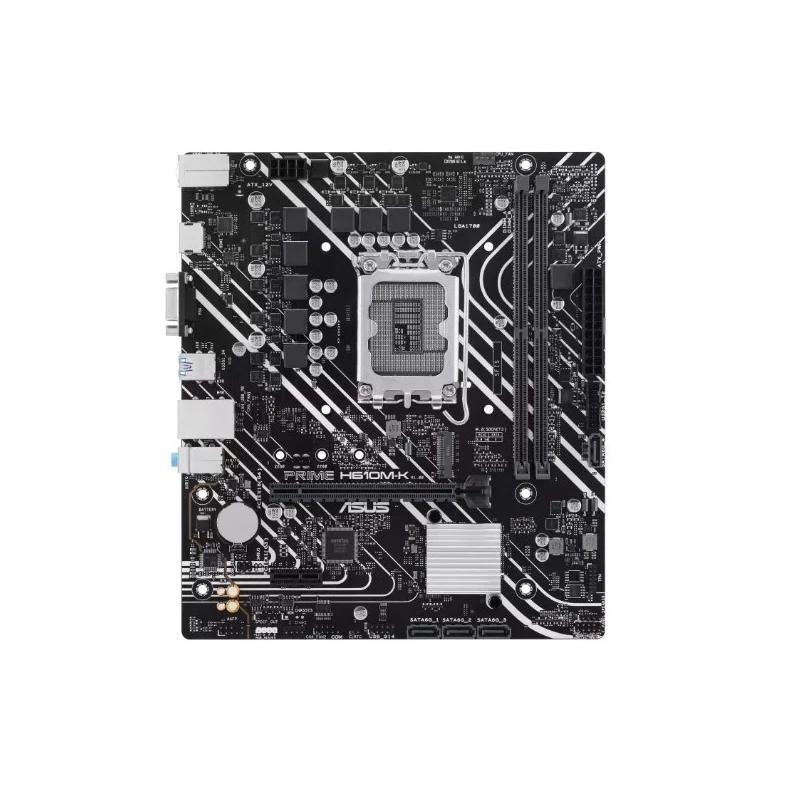

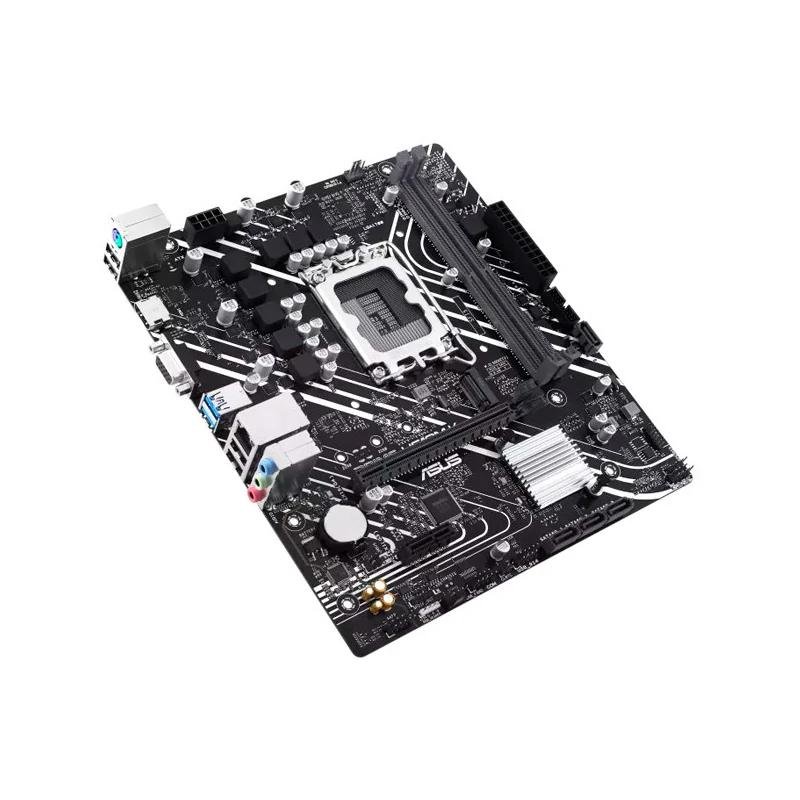

ASUS Base PRIME H610M-K DDR5 mATX LGA1700

Name: ASUS Base PRIME H610M-K DDR5 mATX LGA1700
SKU: 90MB1GA0-M0EAY0
Price: 73.00 EUR
Availability: InStock

Próxima llegada:
Almacén: Almacen I

Part number: 90MB1GA0-M0EAY0
EAN/UPC: 4711387336328

La disponibilidad muestra el stock en nuestros almacenes, no en la tienda física. Si el producto está disponible, puede decidir que se lo enviemos a su domicilio o solicitar la recogida en tienda.

Fabricante: Asus

Puerto USB: 4 x USB 2.0 + 2 x USB 3.x

Salidas: HDMI, VGA

Tamaño: Micro ATX

Iluminación: RGB

Socket: LGA 1700

Generación CPU: Generación 12

Tipo RAM: DDR5

RAM máxima: 96 GB

Velocidad RAM: 5600 Mhz

PCIe: PCIe 4.0

LAN: 1 Gbit

Chipset: H610

Ranuras RAM: 2

M.2: 1 x M.2

SATA: 4 x SATA

USB internos: 1 x USB 2.0 + 1 x USB 3.x

Disponibilidad:

Hay existencias

73.00€

Hay existencias

Descripción

Zócalo Intel LGA 1700: listo para procesadores Intel de 13.ª y 12.ª generación. Conectividad ultrarrápida: PCIe 4.0, ranura M.2 de 32 Gbps, Realtek Ethernet de 1 Gb y USB 3.2 Gen 1. Refrigeración Integral: Disipador PCH y Fan Xpert 2+. 5X Protection III: múltiples protecciones de hardware para una protección integral

Especificaciones Técnicas
Modelo	PLACA BASE PRIME H610M-K ASUS
Part Number	90MB1GA0-M0EAY0
CPU	– Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors* – Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** – Refer to www.asus.com for CPU support list
Chipset	Intel H610 Chipset
Memory	– 2 x DIMM slots, Max – 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* – Dual Channel Memory Architecture – Supports Intel Extreme Memory Profile (XMP) – Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support
Graphics	– 1 x VGA port – 1 x HDMI port** – Graphics specifications may vary between CPU types – Please refer to www.intel.com for any updates
Expansion Slots	– Intel 13th & 12th Gen Processors – 1 x PCIe 4.0 x16 slot – Intel H610 Chipset – 1 x PCIe 3.0 x1 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
Storage	– Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports – Intel H610 Chipset – M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) – 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 1Gb Ethernet
USB	– Rear USB (Total 6 ports) – 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – Front USB (Total 4 ports) – 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio	– Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

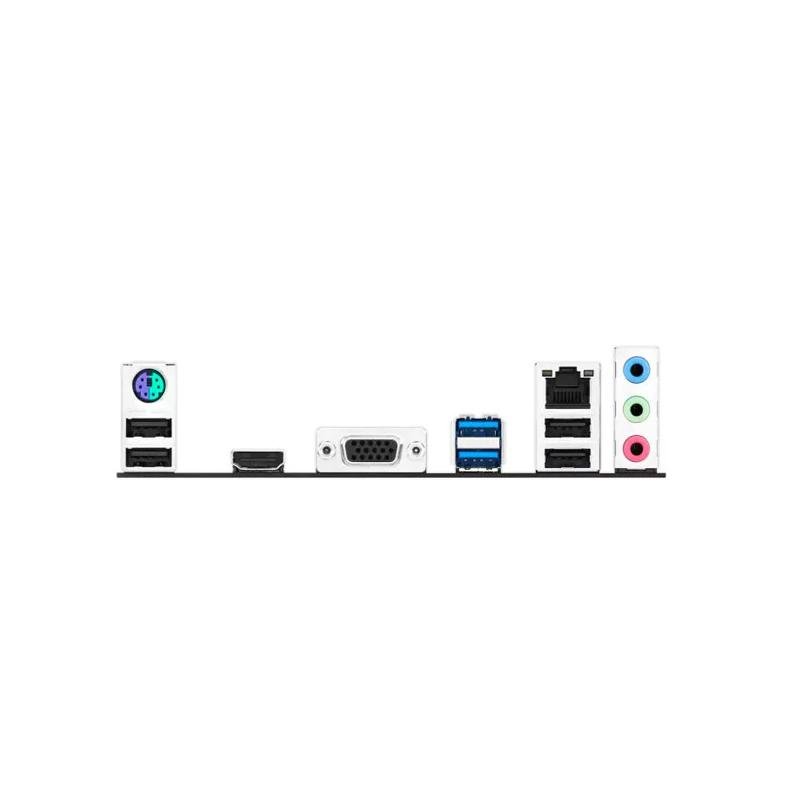

Back Panel I/O Ports	– 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – 1 x VGA port – 1 x HDMI port – 1 x Realtek 1Gb Ethernet port – 3 x Audio jacks – 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	– Fan and Cooling related – 1 x 4-pin CPU Fan header – 2 x 4-pin Chassis Fan headers – Power related – 1 x 24-pin Main Power connector – 1 x 8-pin +12V Power connector – Storage related – 1 x M.2 slot (Key M) – 4 x SATA 6Gb/s ports – USB – 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports 2 additional USB 2.0 ports – Miscellaneous – 1 x RGB header – 1 x Clear CMOS header – 1 x Front Panel Audio header (AAFP) – 1 x COM Port header – 1 x S/PDIF Out header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	– micro-ATX Form Factor – 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Part Number: 90MB1GA0-M0EAY0
EAN: 4711387336328

SKU: 90MB1GA0-M0EAY0 Categorías: Componentes, Placa base Intel, Socket 1700 Etiqueta: Almacen I
