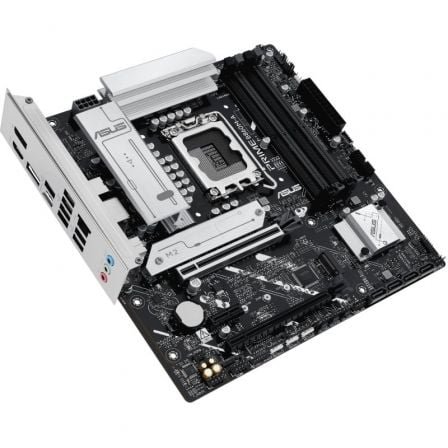

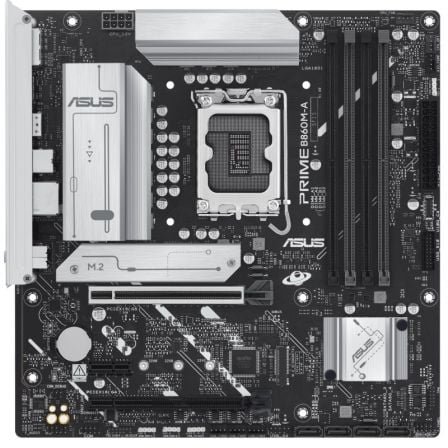

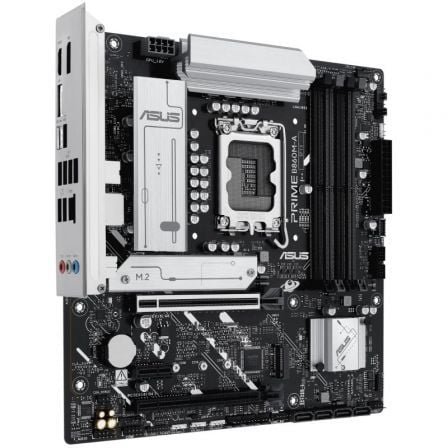

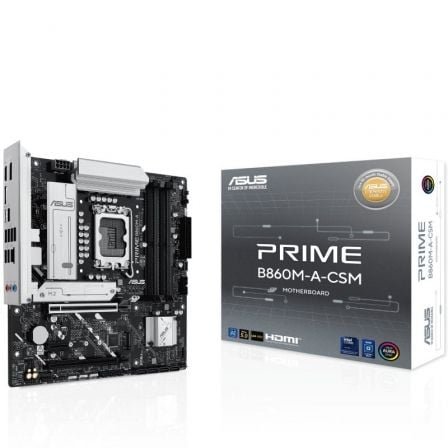

ASUS PRIME B860M-A-CSM mATX 1851

Name: ASUS PRIME B860M-A-CSM mATX 1851
SKU: 90MB1K00-M0EAYC
Price: 151.00 EUR
Availability: InStock

Próxima llegada:
Almacén: Almacen A

Part number: 90MB1K00-M0EAYC
EAN/UPC: 4711387819869

La disponibilidad muestra el stock en nuestros almacenes, no en la tienda física. Si el producto está disponible, puede decidir que se lo enviemos a su domicilio o solicitar la recogida en tienda.

Fabricante: ATI

Puerto USB: 4 x USB 2.0 + 3 x USB 3.x + 1 x USB C

Salidas: Displayport, DVI, HDMI

Tamaño: Micro ATX

Iluminación: RGB

Socket: LGA 1851

Generación CPU: Generación 15

Tipo RAM: DDR5

RAM máxima: 256 GB

Velocidad RAM: 8666 Mhz

PCIe: PCIe 5.0

LAN: 2.5 Gbit

Chipset: B860

Ranuras RAM: 4

M.2: 2 x M.2

SATA: 4 x SATA

USB internos: 1 x USB 2.0 + 2 x USB 3.x + 1 x USB C + 2 x Thunderbolt

Disponibilidad:

Solo quedan 1 disponibles

151.00€

Solo quedan 1 disponibles

Descripción

Especificaciones Técnicas
Modelo	PLACA BASE PRIME B860M-A-CSM ASUS
Part Number	90MB1K00-M0EAYC
CPU	Support Intel Core Ultra Processors (Series 2) , LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list *Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Memory	4 x DIMM slots, max 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ Adjustments will be made based on the specifications of mass-produced memory products available on the market * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Graphics	2 x DisplayPort 1 x HDMI port* * Graphics specifications may vary between CPU types Please refer to www.intel.com for any updates * Supports max 4K@60Hz as specified in DisplayPort 1.4 * Supports 4K@60Hz as specified in HDMI 2.1 * VGA resolution support depends on processors’ or graphic cards’ resolution ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card
Expansion Slots	Intel Core Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0** x1 slot To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) IntelB860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C power delivery output: max 5V/3A *USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Part Number: 90MB1K00-M0EAYC
EAN: 4711387819869

SKU: 90MB1K00-M0EAYC Categorías: Componentes, Placa base Intel, Socket 1851 Etiqueta: Almacen A
