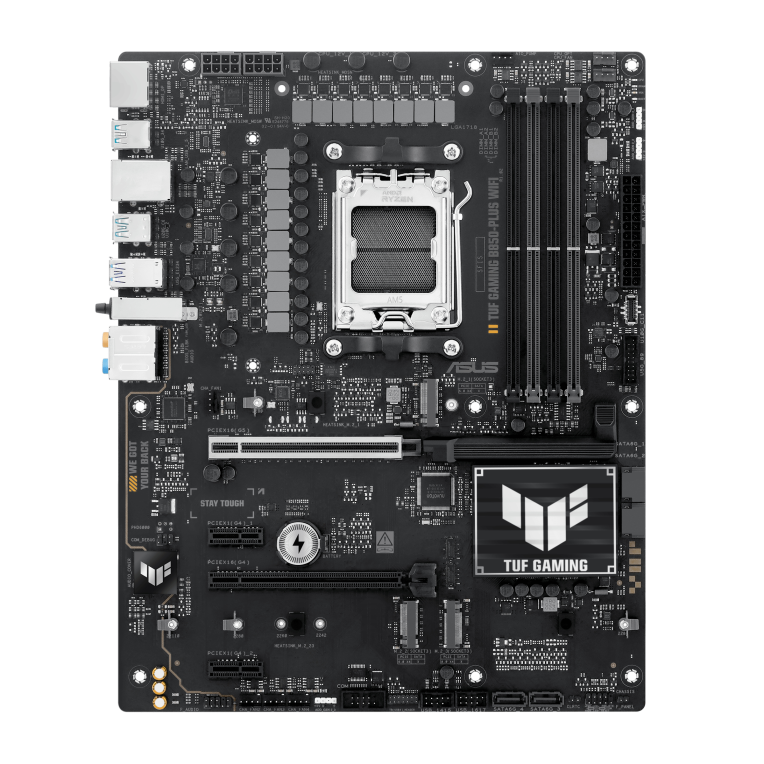

ASUS TUF GAMING B850-PLUS WIFI PCI-E x16 Gen5, M.2 Gen5
Próxima llegada:Almacén: Almacen A
Part number: 90MB1J30-M0EAY0
EAN/UPC: 4711387781609
Solo quedan 1 disponibles
250.00€
Solo quedan 1 disponibles
| Especificaciones Técnicas | |
| Modelo | PLACA BASE TUF GAMING B850-PLUS WIFI ASUS |
| Part Number | 90MB1J30-M0EAY0 |
| CPU | AMD Socket AM5 for AMD Ryzen” 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list |
| Memory | 4 x DIMM slots, max 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen” 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO”) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Graphics | 1 x DisplayPort** 1 x HDMI” port*** * Graphics specifications may vary between CPU types Please refer to AMD CPU specifications * Supports max *** Supports 4K@60Hz as specified in HDMI 2.1 |
| Expansion Slots | AMD Ryzen” 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen” 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) * Specifications vary by CPU types *** The PCIEX16(G4) shares bandwidth with M.2_3 To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen” 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen” 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Specifications vary by CPU types * The PCIEX16(G4) shares bandwidth with M.2_3 AMD RAIDXpert2 Technology |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4*** * Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E For Windows 10, please refer to the Wi-Fi chipset vendor’s website for details * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications |
| USB | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max 5V/3A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI” port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack” button |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt” (USB4) header |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Part Number: 90MB1J30-M0EAY0
EAN: 4711387781609
