| Especificaciones Técnicas |
| Modelo |

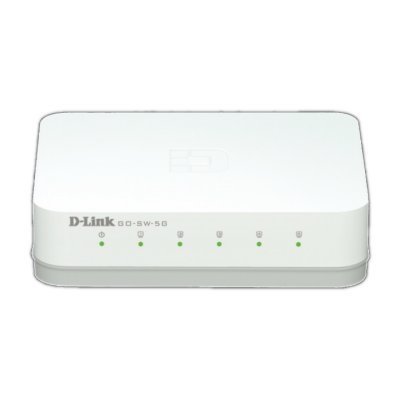

D-LINK SWITCH 5 PUERTOS 10/100/1Gbit DLINKGO |
| Part Number |
GO-SW-5G |
| Standards |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA/CD
Data Transfer Rates |
| Ethernet: |
10 Mbps (half duplex), 20 Mbps (full duplex) |
| Fast Ethernet: |
100 Mbps (half duplex), 200 Mbps (full duplex) |
| Gigabit Ethernet: |
2000 Mbps (full duplex)
Topology
Star
Network Cables |
| 10BASE-T: |
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.) |
| 100BASE-TX, 1000BASE-T: |
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.) |
| Media Interface Exchange |
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Transmission Method
Store-and-forward
MAC Address Table
2K
MAC Address Learning
Automatic update |
| Packet Filtering/Forwarding Rates |
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
128KB per device
Jumbo Frames
9,216 Bytes |
| DC Input |
External 5 V/1 A Level ”V” Power Adapter |
| Power Consumption |
DC input: 1.67 watts
AC input: 2.7 watts
MTBF
815,700 hours |
| Operating Temperature |
32 to 104 ºF (0 to 40 ºC) |
| Storage Temperature |
14 to 158 ºF (-10 to 70 ºC) |
| Operating Humidity |
10% to 90% RH non-condensing |
| Storage Humidity |
5% to 90% RH non-condensing |
| Dimensions |
3.8 x 3.1 x 1.1 inches (97 x 79 x 28 mm) |
| Weight |
3.688 ounces (105 grams)
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL/UL
CCC
Anatel |
