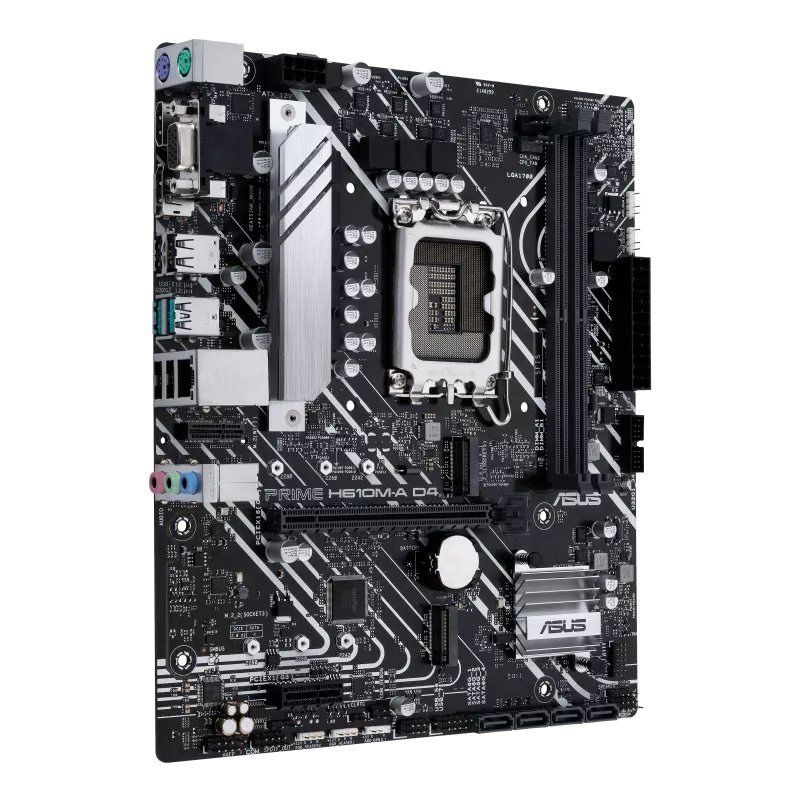

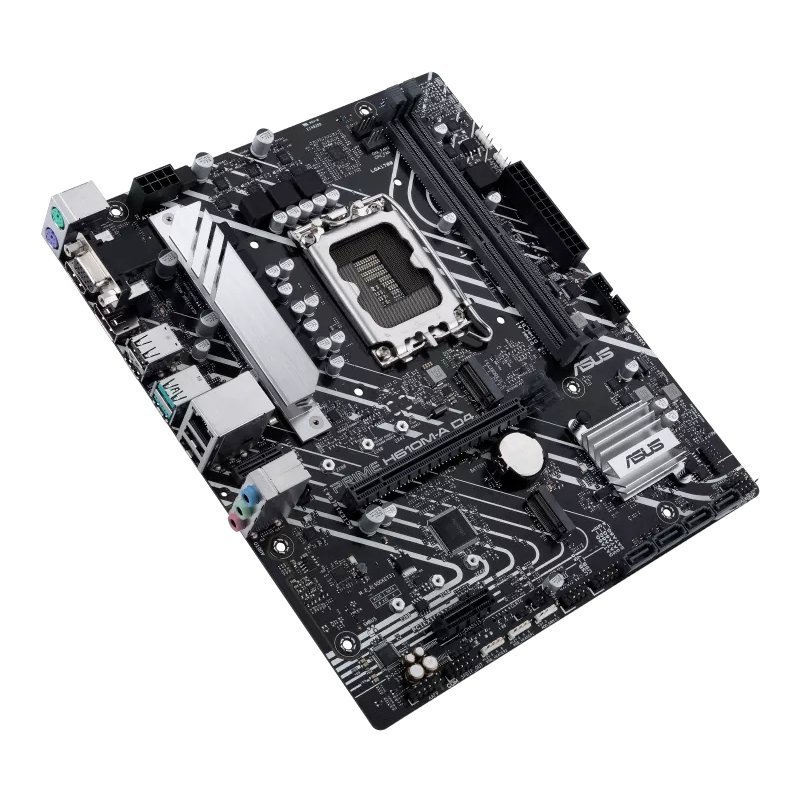

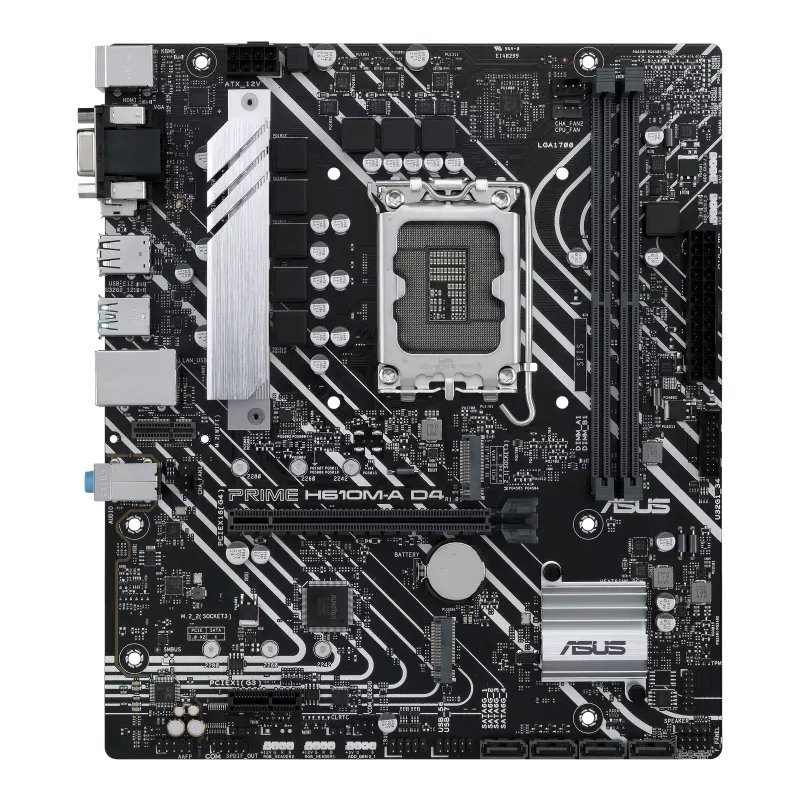

Base Asus Prime H610M-A D4-CSM/ Socket 1700/ Micro ATX

Name: Base Asus Prime H610M-A D4-CSM/ Socket 1700/ Micro ATX
SKU: 90MB19P0-M0EAYC
Price: 81.00 EUR
Availability: InStock

Próxima llegada:
Almacén: Almacen Y

Part number: 90MB19P0-M0EAYC
EAN/UPC: 4711081514442

La disponibilidad muestra el stock en nuestros almacenes, no en la tienda física. Si el producto está disponible, puede decidir que se lo enviemos a su domicilio o solicitar la recogida en tienda.

Fabricante: Asus

Puerto USB: 4 x USB 2.0 + 2 x USB 3.x

Salidas: Displayport, HDMI, VGA

Tamaño: Micro ATX

Iluminación: RGB

Socket: LGA 1700

Generación CPU: Generación 12

Tipo RAM: DDR4

RAM máxima: 64 GB

Velocidad RAM: 3200 Mhz

PCIe: PCIe 4.0

LAN: 1 Gbit

Chipset: H610

Ranuras RAM: 2

M.2: 3 x M.2

SATA: 4 x SATA

USB internos: 1 x USB 2.0 + 1 x USB 3.x

Disponibilidad:

Hay existencias

81.00€ ~~83.00€~~

Hay existencias

Descripción

Zócalo Intel LGA 1700: Listo para procesadores Intel de 12.ª generación. Refrigeración integral: disipador térmico VRM, disipador térmico PCH y Fan Xpert 2+. Conectividad ultrarrápida: ranura M.2 de 32 Gbps, puertos Intel 1 Gb Ethernet y USB 3.2 Gen 2. Aura Sync RGB: encabezados Gen 2 direccionables incorporados para tiras de LED RGB, sincronizados fácilmente con hardware compatible con Aura Sync. ASUS Control Center Express (ACCE) para facilitar la gestión de terminales de TI

Especificaciones Técnicas
Modelo	PLACA BASE PRIME H610M-A D4 CSM ASUS
Part Number	90MB19P0-M0EAYC
CPU	– Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* – Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** – * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset	Intel H610 Chipset
Memory	– 2 x DIMM, Max – 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* – Dual Channel Memory Architecture – Supports Intel Extreme Memory Profile (XMP) – Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)
Graphics	– 1 x DisplayPort – 1 x D-Sub port – 1 x HDMI port* – Graphics specifications may vary between CPU types – Please refer to www.intel.com for any updates
Expansion Slots	– Intel 12th Gen Processors – 1 x PCIe 4.0 x16 slot – Intel H610 Chipset – 1 x PCIe 3.0 x1 slot
Storage	– Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports – Intel H610 Chipset – M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) – 4 x SATA 6Gb/s ports
Ethernet	1 x Intel 1Gb Ethernet
Wireless & Bluetooth	– V-M.2 slot only (Key E, CNVi & PCIe)* – Wi-Fi module is sold separately
USB	– Rear USB (Total 6 ports) – 2 x USB 3.2 Gen 2 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – Front USB (Total 5 ports) – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio	– Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

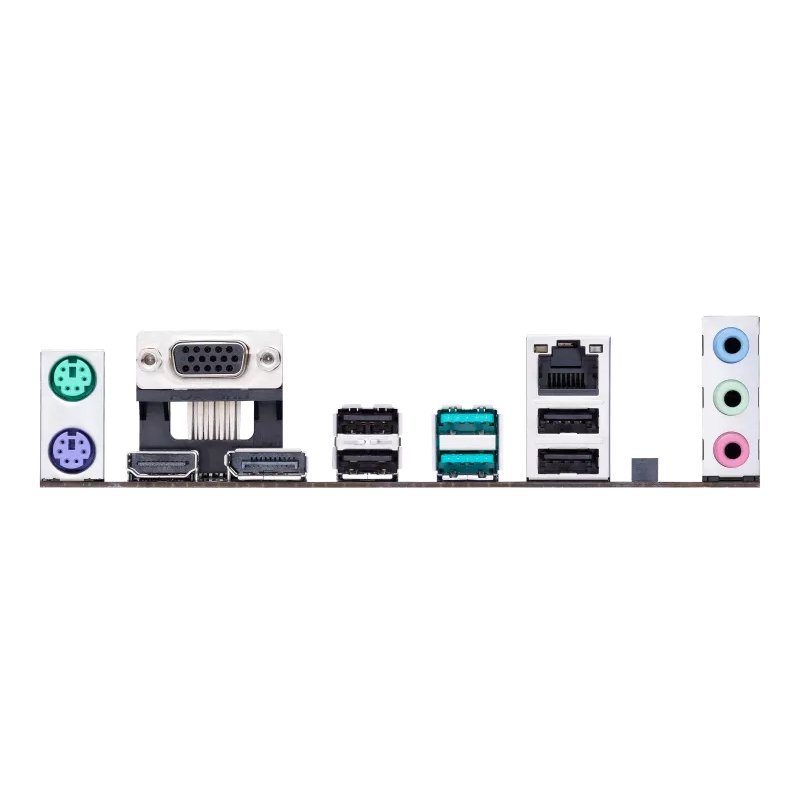

Back Panel I/O Ports	– 2 x USB 3.2 Gen 2 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) – 1 x DisplayPort – 1 x HDMI port – 1 x D-Sub port – 1 x V-M.2 slot (Key E) – 1 x Intel 1Gb Ethernet port – 3 x Audio jacks – 1 x PS/2 Keyboard (purple) port – 1 x PS/2 Mouse (green) port
Internal I/O Connectors	– Fan and Cooling related – 1 x 4-pin CPU Fan header – 2 x 4-pin Chassis Fan headers – Power related – 1 x 24-pin Main Power connector – 1 x 8-pin +12V Power connector – Storage related – 2 x M.2 slots (Key M) – 4 x SATA 6Gb/s ports – USB – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 2 x USB 2.0 headers support additional 3 USB 2.0 ports – Miscellaneous – 3 x Addressable Gen 2 headers – 2 x AURA RGB headers – 1 x Clear CMOS header – 1 x Front Panel Audio header (AAFP) – 1 x COM Port header – 1 x S/PDIF Out header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header
BIOS. 128 Mb Flash ROM, UEFI AMI BIOS	Manageability
WOL by PME, PXE	Form Factor

Part Number: 90MB19P0-M0EAYC
EAN: 4711081514442

SKU: 90MB19P0-M0EAYC Categorías: Componentes, Placa base Intel, Socket 1700 Etiqueta: Almacen Y
